放大镜通过网格呈现
概述
放大镜通过网格呈现
可用于表单，查询和网格动态下拉及树选择
参数
列里配置Lookup节点
示例
配置例子--通过查询列设置：
<QueryList>
<Query Name="SysMapping" ColCount="3" AutoWidth="false">
<Column Field="Caption" CaptionText="名称" FieldType="VarChar" EditType="TextBox" Enabled="Yes" FilterType="Like" Width="150px">
</Column>
<Column Field="Entity" CaptionText="实体架构名" FieldType="VarChar" Enabled="Yes" FilterType="Like" EditType="TextBox" Width="150px">
</Column>
<Column Field="SysModelId" CaptionText="模块" FieldType="VarChar" Enabled="Yes" FilterType="Like" EditType="DropdownTree" Width="200px">
<Map Mode="ParentTable" ParentId="ParentSysModelId">
<ParentTable Name="SysModel" PTText="Caption" PTValue="SysModelId"/>
</Map>
<Lookup Alt="查找" Img="easyui/default/images/searchbox_button.png">
<Events>
<Event Name="onclick" Script="wm.c.advanceLookup({})"/>
</Events>
</Lookup>
</Column>
</Query>
</QueryList>
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35

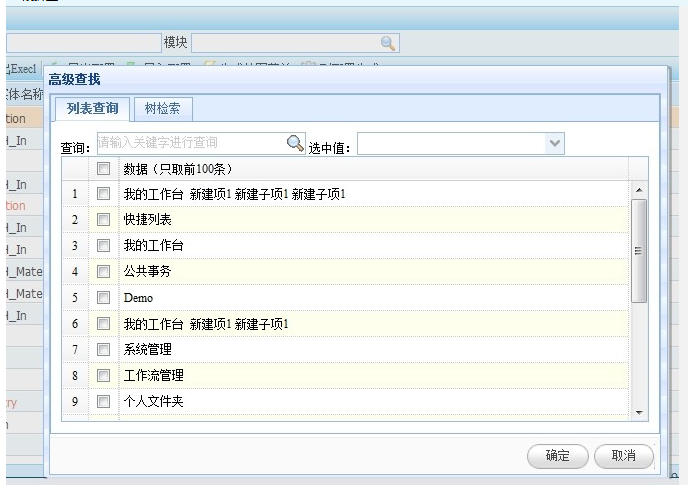

效果：
配置例子--通过表单列设置：
<FormList>
<Form Name="SysMapping" Title="业务对象信息">
<MainTabs>
<Tab TabIndex="0" Text="常规">
<Group Text="基本属性" ColumnCount="3" TitleWidth="100">
<Column Field="Caption" ColSpan="3" RowSpan="1" CaptionText="名称" FieldType="VarChar" EditType="TextBox" Enabled="Yes">
<Verify Type="NotEmpty"></Verify>
</Column>
<Column Field="Entity" ColSpan="3" RowSpan="1" CaptionText="实体名称" FieldType="VarChar" EditType="Combo" Enabled="Yes">
<Verify Type="Suggest"></Verify>
<Map Mode="DataSource" >
<DataSource Type="SqlServer"><![CDATA[ select Tablename V,TableName+' '+Caption T from SysEntity ]]></DataSource>
<DataSource Type="Oracle"><![CDATA[ select Tablename V,Concat(TableName,Caption) T from SysEntity ]]></DataSource>
</Map>
<Args>
<Arg Name="isInSelectArea" Value="true" />
</Args>
<Events>
<Event Name="afterChange" Script="AutoSysMapping"></Event>
</Events>
<Lookup Alt="查找" Img="">
<Events>
<Event Name="onclick" Script="wm.c.advanceLookup({})"/>
</Events>
</Lookup>
</Column>
<Column Field="SysModelId" ColSpan="3" RowSpan="1" CaptionText="模块" FieldType="VarChar" EditType="DropdownTree" Enabled="Yes">
<Verify Type="NotEmpty"></Verify>
<Map Mode="Internal">
<Internal Name="模块"/>
</Map>
<Lookup Alt="查找" Img="easyui/default/images/searchbox_button.png">
<Events>
<Event Name="onclick" Script="wm.c.advanceLookup({})"/>
</Events>
</Lookup>
</Column>
<Column Field="Path" ColSpan="3" RowSpan="1" CaptionText="配置文件路径" FieldType="VarChar" EditType="TextBox" Enabled="Yes">
<Verify Type="NotEmpty"></Verify>
</Column>
<Column Field="MappingInfo" ColSpan="3" RowSpan="4" CaptionText="说明" FieldType="nText" EditType="Textarea" Enabled="Yes">
</Column>
</Group>
</Tab>
</MainTabs>
</Form>
</FormList>
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93

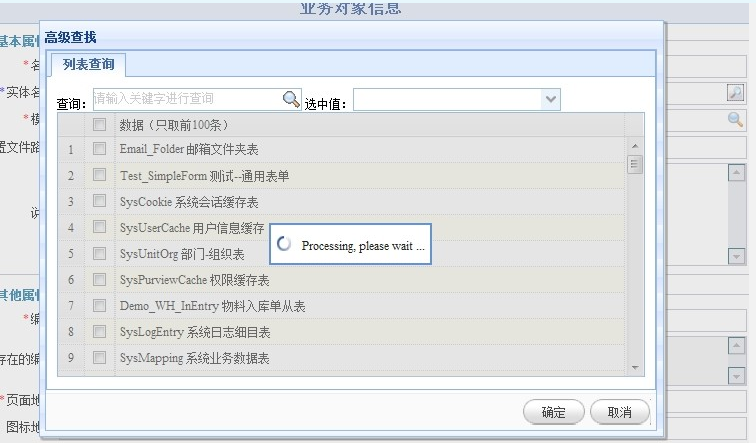

效果：
